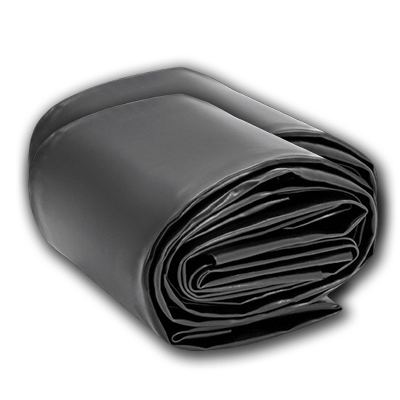

Pond Liner
Pond Liner Manufacturer
Harmain Polyfab Pvt. Ltd. is a leading Pond Liner Manufacturer in Kolkata, West Bengal, Jharkhand, Bihar, Odisha, and Assam, offering premium-quality HDPE Pond Linersfor agriculture, aquaculture, and water conservation projects. Our pond liners are manufactured using high-grade virgin polymer and advanced production technology to deliver superior waterproofing, excellent UV resistance, and long-lasting performance.
Designed to minimize water seepage and maximize water storage, our pond liners are suitable for farms, fisheries, irrigation reservoirs, rainwater harvesting systems, and industrial water storage applications. With customized sizes, thicknesses, and professional support, we provide reliable lining solutions for projects of every scale. HDPE pond liners are widely valued for their impermeability, UV stability, puncture resistance, and long service life in water containment applications.
Types of Pond Liners We Offer

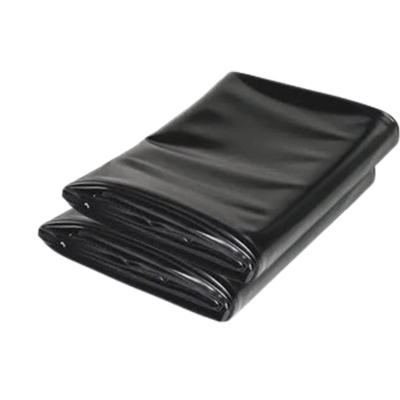

Farm Pond Liner
Our Farm Pond Liners are specially designed to prevent water loss through seepage, helping farmers store irrigation water efficiently throughout the year. They improve water availability during dry seasons, reduce groundwater dependence, and support higher agricultural productivity.
Features
- High-density HDPE construction
- Superior water retention
- UV and weather resistant
- High puncture and tear resistance
- Chemical and fertilizer resistant
- Easy installation
- Long service life
- Low maintenance requirements
Applications
- Agricultural water storage
- Irrigation ponds
- Rainwater harvesting
- Drip irrigation reservoirs
- Canal lining
- Plantation water storage
- Horticulture projects
- Livestock water ponds

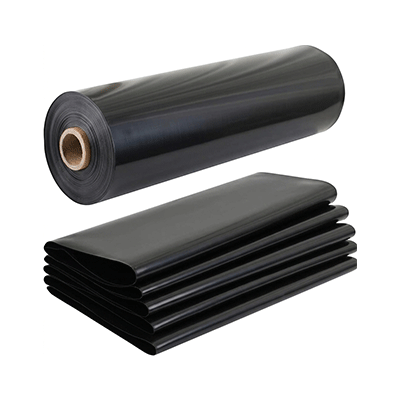

Fish Pond Liner
The Fish Pond Linerfrom Harmain Polyfab Pvt. Ltd. is manufactured for aquaculture and commercial fish farming applications. It creates a leak-proof barrier that maintains water quality, reduces contamination, and provides a healthier environment for fish growth.
Features
- Excellent waterproof performance
- Fish-safe HDPE material
- UV stabilized
- High tensile strength
- Resistant to algae growth and chemicals
- Flexible and durable
- Long operational life
- Minimal maintenance
Applications
- Fish farming
- Shrimp farming
- Aquaculture ponds
- Hatcheries
- Ornamental fish ponds
- Biofloc systems
- Commercial fisheries
- Water storage tanks

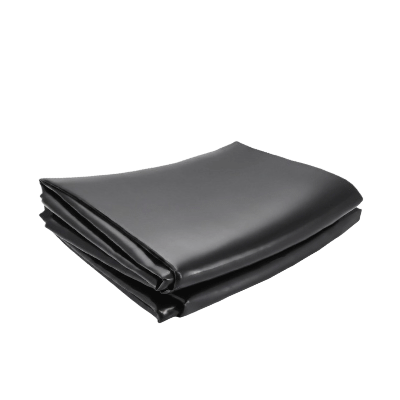

Water Reservoir Liner
A Water Reservoir Liner is a premium-quality waterproof geomembrane designed to prevent water seepage and ensure long-term water storage. At Harmain Polyfab Pvt. Ltd., we manufacture and supply high-performance Water Reservoir Liners that help conserve water, reduce maintenance costs, and improve the efficiency of water management systems.
Key Features of Water Reservoir Liner
- Manufactured from premium HDPE/LLDPE/LDPE material
- Superior waterproof and leak-proof performance
- High tensile strength and puncture resistance
- UV stabilized for extended outdoor life
- Resistant to chemicals, algae, and microbial growth
- Easy installation with low maintenance
- Available in custom sizes and thicknesses
- Long service life with excellent weather resistance
Applications
- Agricultural water reservoirs
- Irrigation water storage
- Rainwater harvesting systems
- Industrial water storage tanks
- Fire water reservoirs
- Fish farming and aquaculture projects
- Mining and construction water storage
- Municipal and commercial water conservation projects
Why Choose Harmain Polyfab Pvt. Ltd.?
- Premium quality HDPE pond liners
- Advanced manufacturing technology
- Customized sizes and thicknesses
- Leak-proof installation support
- Competitive pricing
- Timely delivery
- Experienced technical team
- Reliable after-sales service
- Bulk order capability
- Solutions for agricultural and industrial projects
Technical Specifications for Pond Liners
| Specification | Farm Pond Liner | Fish Pond Liner | Water Reservoir Liner |
| Material | HDPE / LLDPE Geomembrane | Virgin HDPE / LLDPE Geomembrane | HDPE / LLDPE / LDPE Geomembrane |
| Thickness | 300 Micron – 2000 Micron | 500 Micron – 2000 Micron | 250 Micron – 2000 Micron |
| Standard Width | Up to 8 Meters | Up to 8 Meters | Up to 8 Meters |
| Length | Custom Roll Length | Custom Roll Length | Custom Roll Length |
| Colour | Black, Blue | Black, Blue | Black, Blue, Green |
| Density (HDPE) | 0.94 g/cm³ (Approx.) | 0.94 g/cm³ (Approx.) | 0.94 g/cm³ (Approx.) |
| Tensile Strength | ≥ 20 MPa | ≥ 20 MPa | ≥ 20 MPa |
| Elongation at Break | ≥ 700% | ≥ 700% | ≥ 700% |
| Puncture Resistance | High | Very High | High |
| Tear Resistance | Excellent | Excellent | Excellent |
| UV Resistance | UV Stabilized | UV Stabilized | UV Stabilized |
| Chemical Resistance | Excellent | Excellent | Excellent |
| Water Permeability | 100% Waterproof | 100% Waterproof | 100% Waterproof |
| Temperature Resistance | -40°C to +80°C | -40°C to +80°C | -40°C to +80°C |
| Expected Service Life | 10–20 Years* | 10–20 Years* | 10–20 Years* |
| Installation Method | Heat Wedge Welding / Extrusion Welding | Heat Wedge Welding / Extrusion Welding | Heat Wedge Welding / Extrusion Welding |
*Service life depends on installation quality, liner thickness, environmental conditions, and maintenance.
Recommended Thickness by Application
| Application | Recommended Thickness |
| Small Farm Pond | 300–500 Micron |
| Medium Farm Pond | 500–750 Micron |
| Large Irrigation Pond | 750–1000 Micron |
| Biofloc Fish Tank | 500–750 Micron |
| Fish Farming Pond | 750–1000 Micron |
| Commercial Aquaculture | 1000–1500 Micron |
| Water Reservoir | 750–1500 Micron |
| Industrial Water Storage | 1000–2000 Micron |
Manufactured by Harmain Polyfab Pvt. Ltd.
Harmain Polyfab Pvt. Ltd.manufactures premium-qualityFarm Pond Liners, Fish Pond Liners, and Water Reservoir Liners using advanced geomembrane technology. Our pond liners are designed for superior waterproofing, UV protection, and long-lasting performance, making them ideal for agriculture, aquaculture, irrigation, rainwater harvesting, and industrial water storage applications across Kolkata, West Bengal, Jharkhand, Bihar, Odisha, and Assam.
Benefits of Pond Liners
- Prevents water seepage and leakage
- Conserves valuable water resources
- Improves irrigation efficiency
- Increases agricultural productivity
- Reduces maintenance costs
- Resistant to UV rays and harsh weather
- High puncture and tear resistance
- Eco-friendly water conservation solution
- Suitable for all soil conditions
- Cost-effective long-term investment
Industries We Serve
- Agriculture
- Aquaculture
- Fisheries
- Irrigation Projects
- Water Conservation Projects
- Landscaping
- Rainwater Harvesting
- Industrial Water Storage
- Government Water Management Projects
- Rural Development Projects
Frequently Asked Questions (FAQs)
What is a pond liner?
A pond liner is a waterproof HDPE membrane installed inside ponds to prevent water seepage and ensure long-term water storage.
Which pond liner is best for agriculture?
HDPE Farm Pond Liners are considered one of the best options because of their durability, UV resistance, and excellent water retention capabilities.
Can HDPE pond liners be used for fish farming?
Yes. HDPE Fish Pond Liners are widely used in aquaculture as they help maintain water quality and reduce leakage.
Do you provide customized pond liners?
Yes, Harmain Polyfab Pvt. Ltd. manufactures pond liners in customized sizes and thicknesses according to project requirements.
Which locations do you serve?
We supply pond liners across Kolkata, West Bengal, Jharkhand, Bihar, Odisha, and Assam.
